11 000 m2 shopping center
To execute such a large scanning operation within a timeframe and budget that is acceptable to the asset owner would not have been possible with any other concrete scanning technology.
Dr. Guido Tronca
Elop Insight
Elop Insight is the world's first rolling, ultrasonic scanning solution for concrete inspection. Scan with walking speed up to 4 km/h. Open up new business opportunities within the field of NDT concrete inspection. Get ahead of competition with faster execution, lower price and higher accuracy.
Dry-coupling, rolling ultrasound
Cloud based 3D Visualization
Securing critical infrastructure
Unique data and insight

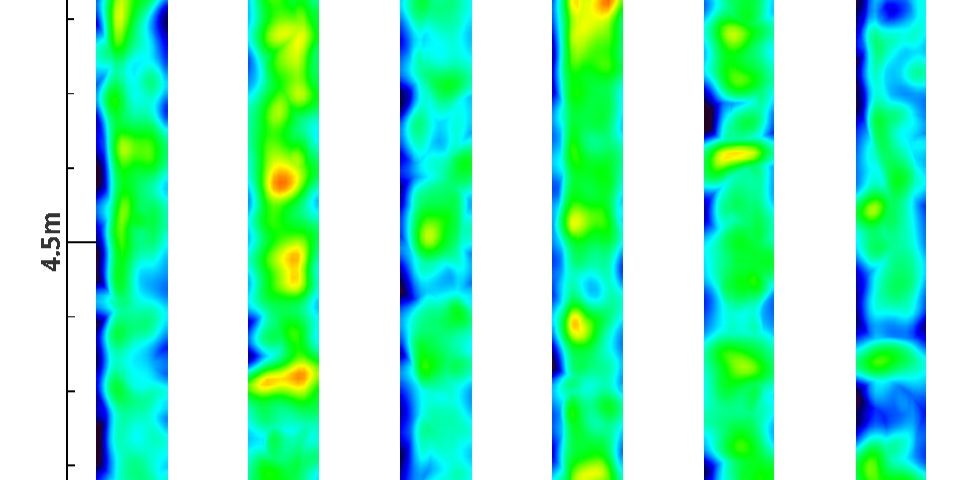

Sparse tracks
Using sparse tracks to cover (example) 4 000 m2 per hour or 30 000 m2 per day.

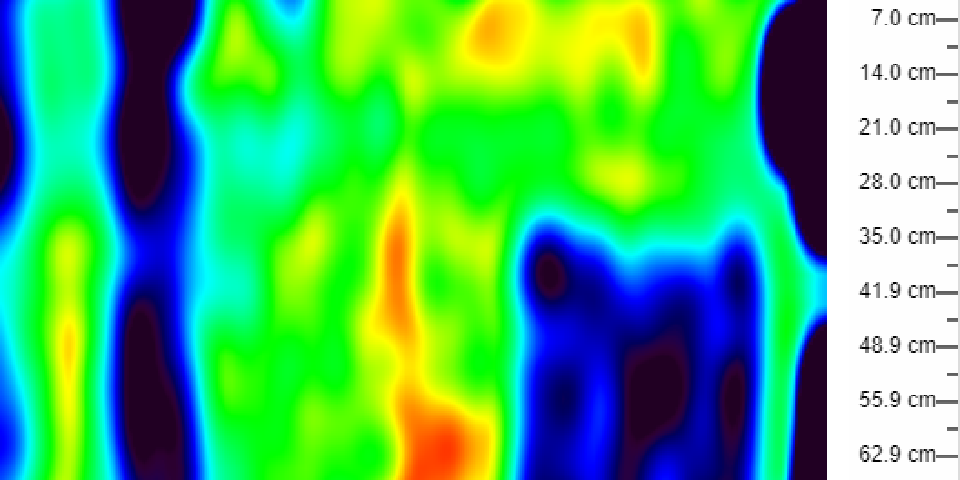

Fully cover every centimeter
Fully cover areas of 400 m2 per hour or 3 000 m2 per day.
Detect
Elop Insight simply and accurately reveals the internal state of concrete structures, giving immediate and actionable insight.
Voids
Delamination
Debonding
Tendon duct
Air pockets
Thickness and Backwall
Grouting
Fiber reinforcement
Honeycombing
Offshore oil platform
The knowledge gained from the operation was very good. We could clearly see the tendon ducts under the heavy reinforcement, in some places even two layers. These are located at approximately 30-40 cm depth, which is substantially deeper than we have been able to see when using other inspection tools.
Terje Ertvaag, Linjebygg

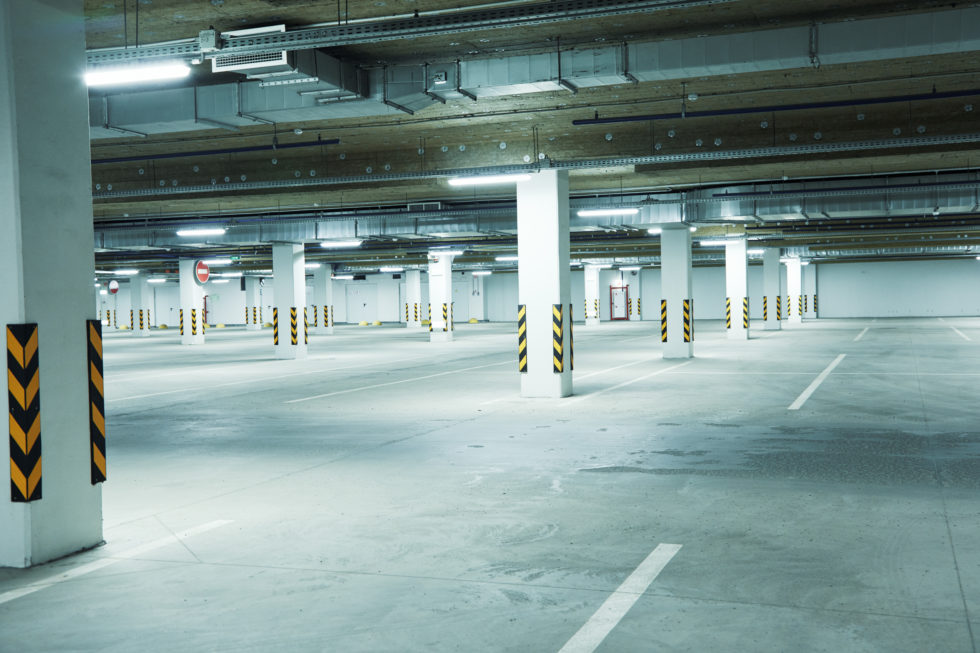

Inspect parking garages
Easily inspect large garage areas with the Elop Insight System. Our combination of rolling capabilities and Insight Trolley allows for quick and accurate scans. All the data is available on the spot, no post-processing or other time-consuming processes are required.

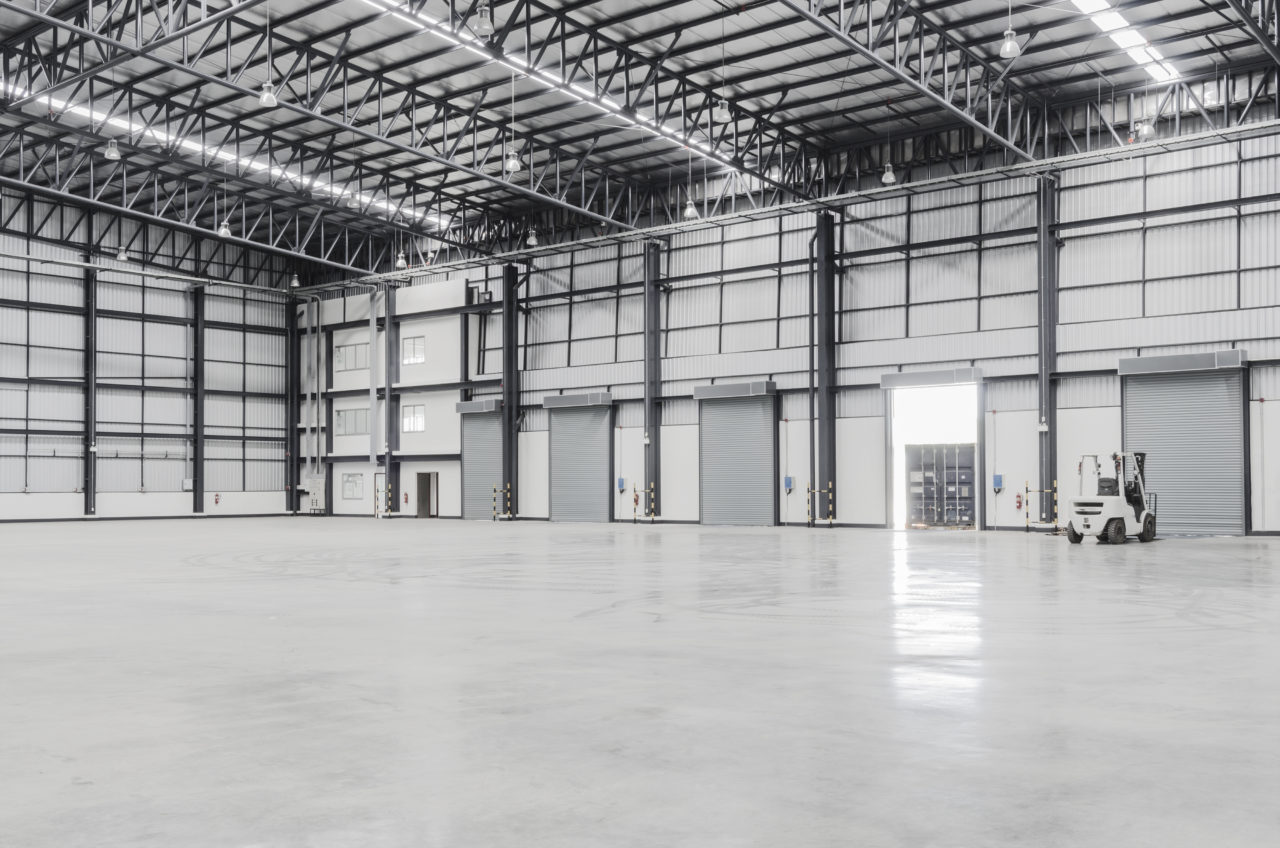

Inspect warehouses
Verify the carrying capacity of warehouse floors. Elop Insight provides accurate and reliable measurement and mapping of warehouse floor thickness, even on Steel Fiber Reinforced Concrete (SFRC). With a fast mapping speed of 4 km/h, our system can effectively cover 15 000 m2 in just one working day, using a 50 cm track spacing.

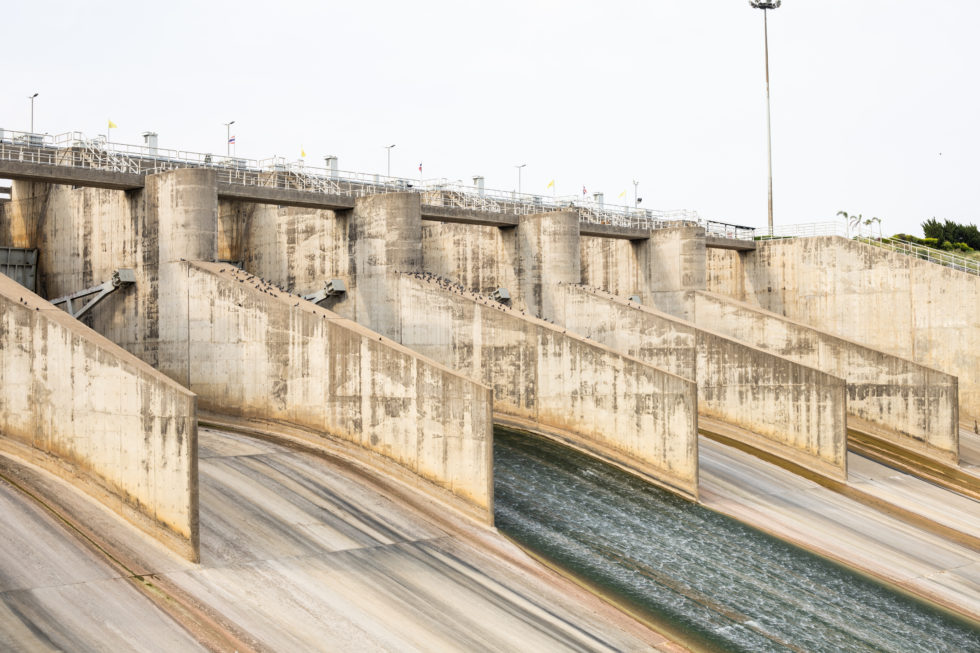

Inspect dams
Dams are important assets for agriculture and power generation. Elop Insight with its high-tech capabilities makes inspection simpler for such massive and complex structures. Elop Insight generates valuable data insights that assist in planning and timely maintenance.

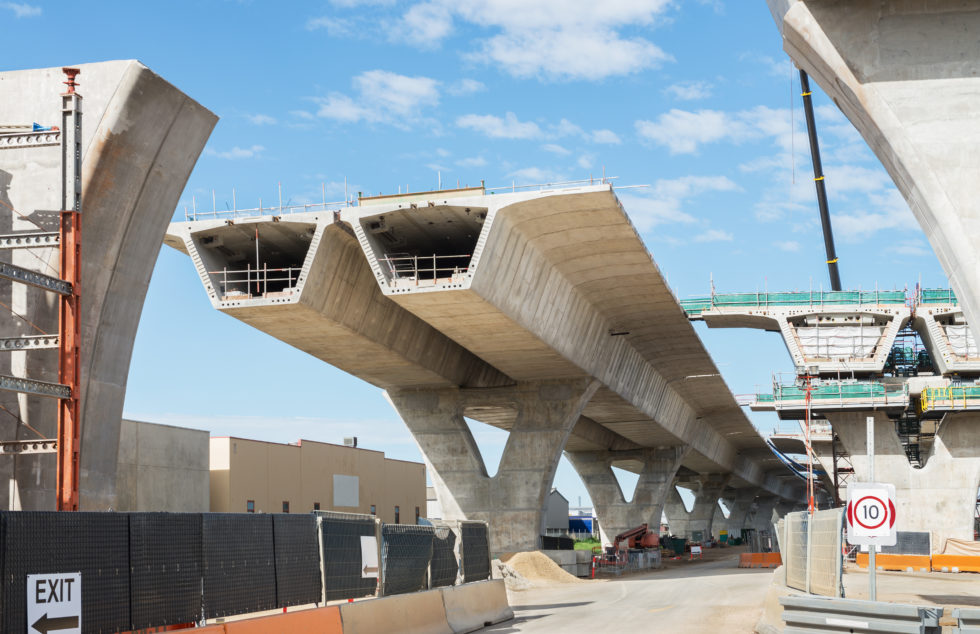

Inspect bridges
Bridges get deteriorated due to structural deficiencies and lack of inspections and maintenance. Elop Insight enables a considerably more efficient and practical way of inspecting larger volumes of concrete structures like bridges.

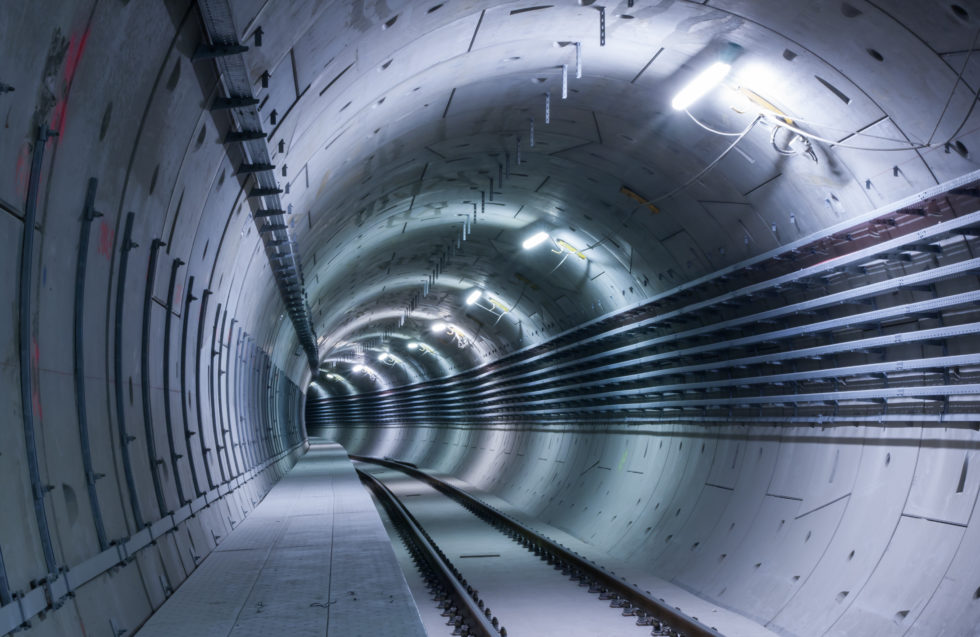

Inspect tunnels
Structures like tunnels are bound to deteriorate due to environmental or man-made impacts. Inspection and timely maintenance are mandatory to offer long lasting and safe service offering. Elop Insight makes the asset inspection efficient, comprehensive, and productive, for complex structures like tunnels.

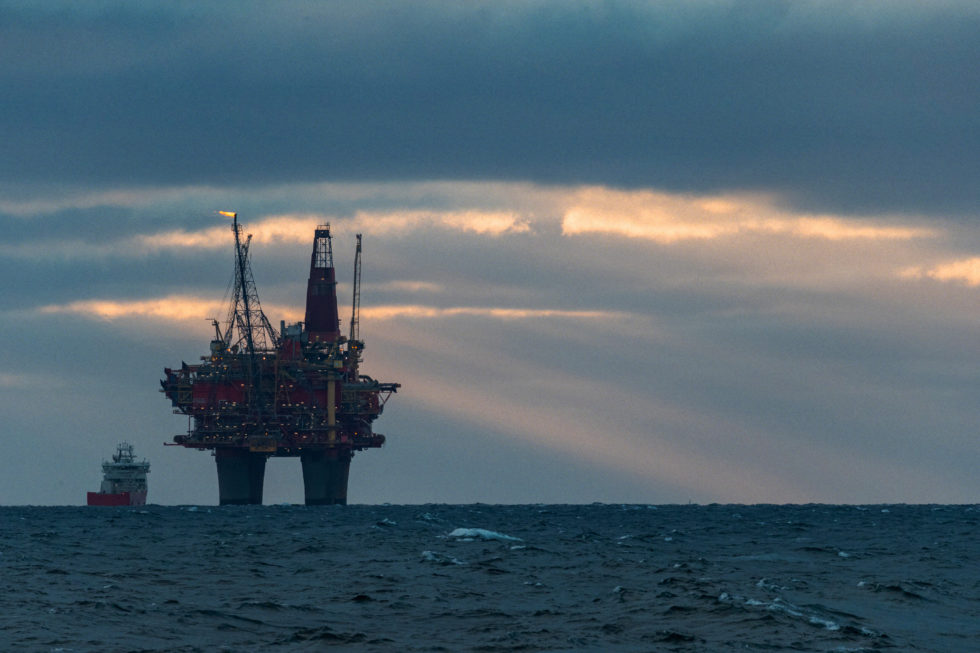

Inspect offshore platforms
Concrete installations in the sea are prone to deterioration due to harsh environmental conditions. With Elop Insight, you can inspect these complex structures in the most efficient and effective way for continued structural integrity and safety.
New business opportunities
10x faster inspection
Access to unique data and insight
Better collaboration
Futureproof
